Container Spreader

If you need anything, feel free to contact us anytime.

Container Spreader

1.High Safety and Reliability – Equipped with mechanical or hydraulic locking systems, the spreader guarantees safe lifting even under heavy-duty working conditions.

2.Versatile Compatibility – Suitable for 20ft, 40ft, and 45ft containers, with both fixed and telescopic types available to meet diverse operational requirements.

3.Durable and Low-Maintenance – Constructed from high-strength steel with corrosion-resistant coatings, ensuring long service life and minimal downtime.

4.Efficient and User-Friendly – Ergonomic design and smooth operation increase loading efficiency and reduce labor intensity.

The container spreader offers safety, durability, and versatility for modern container handling. Its reliable structure and user-oriented design improve efficiency, reduce risks, and deliver long-term value in logistics and port operations.

Deadweight	11.5t
Rated load	41t
Overall machine power	≤8KW
Power supply voltage	AC 380V 50HZ
Control voltage	AC 220V
Protection grade	IP55
Lifting eye rated load	4X10.25t
Environment temperature	-20℃⁓+60℃
Telescopic time（20ft⁓40ft）	⁓22s
Rotation angle	360°（optional）
Rotation speed	1r/min

Product Features and Applications

Features:

1.Robust Design – Manufactured with high-strength alloy steel for durability and stability.

2.Advanced Locking System – Mechanical, hydraulic, or electric twist-locks ensure container safety during lifting.

3.Adjustable Types – Options include fixed spreaders for dedicated use and telescopic models for multi-size container handling.

4.Corrosion Protection – Anti-rust coatings extend service life, even in harsh marine environments.

5.Customizable Options – Available with integrated weighing systems, remote control, or automatic operation.

Applications:

Container spreaders are widely used in ports, container terminals, shipping companies, rail freight yards, and large logistics centers. They are essential in the smooth handling and transfer of containers, reducing turnaround time for cargo ships and improving overall supply chain efficiency. Whether for heavy-duty maritime operations or inland container depots, container spreaders provide reliable, safe, and cost-effective lifting solutions.

Product Details

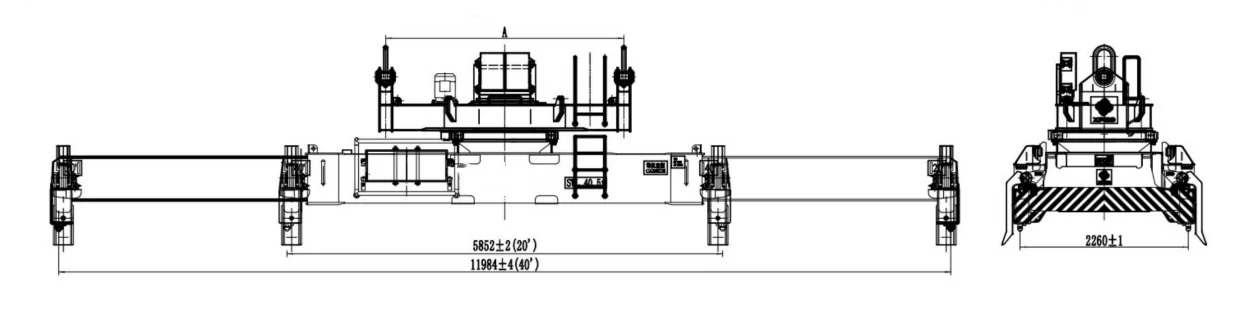

The container spreader is engineered with precision to withstand high working loads and frequent operations. The main frame is fabricated from high-strength welded steel, designed to resist bending and torsional stresses. For operational flexibility, telescopic spreaders adjust between 20ft, 40ft, and 45ft containers, while fixed models are ideal for standardized applications. High-quality bearings, hydraulic cylinders, and control systems ensure smooth, reliable motion with minimal maintenance. Surface treatments, such as anti-corrosion coatings or galvanization, enhance durability in marine and outdoor environments.

Optional features include load monitoring systems, remote operation controls, and safety alarms, which provide operators with real-time status and improve working safety. With these technical refinements, the container spreader combines strength, safety, and user efficiency, making it a trusted choice in container handling industries worldwide.

Product Support

The container spreader has been tested and proven in demanding port and logistics environments. Each unit is produced under strict quality standards and inspected before delivery. High-strength steel and precision welding ensure long-lasting performance under heavy loads. Corrosion-resistant coatings protect the spreader in marine conditions, reducing downtime and extending service life.

The locking system has passed repeated safety tests to guarantee secure container handling. Both fixed and telescopic types comply with international ISO container standards, making them suitable for global operations.

Users in ports, terminals, rail yards, and warehouses confirm the spreader’s stability and efficiency. With strong construction, reliable safety, and flexible applications, the container spreader stands as a proven solution for modern container handling.
