Crane Drum Brake

1.High Strength & Reliability: Crane drum brakes are built with premium crane brake drum material, ensuring durability under heavy loads.

2.Efficient Braking System: Overhead crane drum brake delivers smooth stopping and holding power for safe crane operations.

3.Low Maintenance Design: Precision-machined surfaces reduce wear, extending service life and lowering replacement costs.

Crane drum brakes combine strength, safety, and long-term performance, making them essential for stable lifting operations.

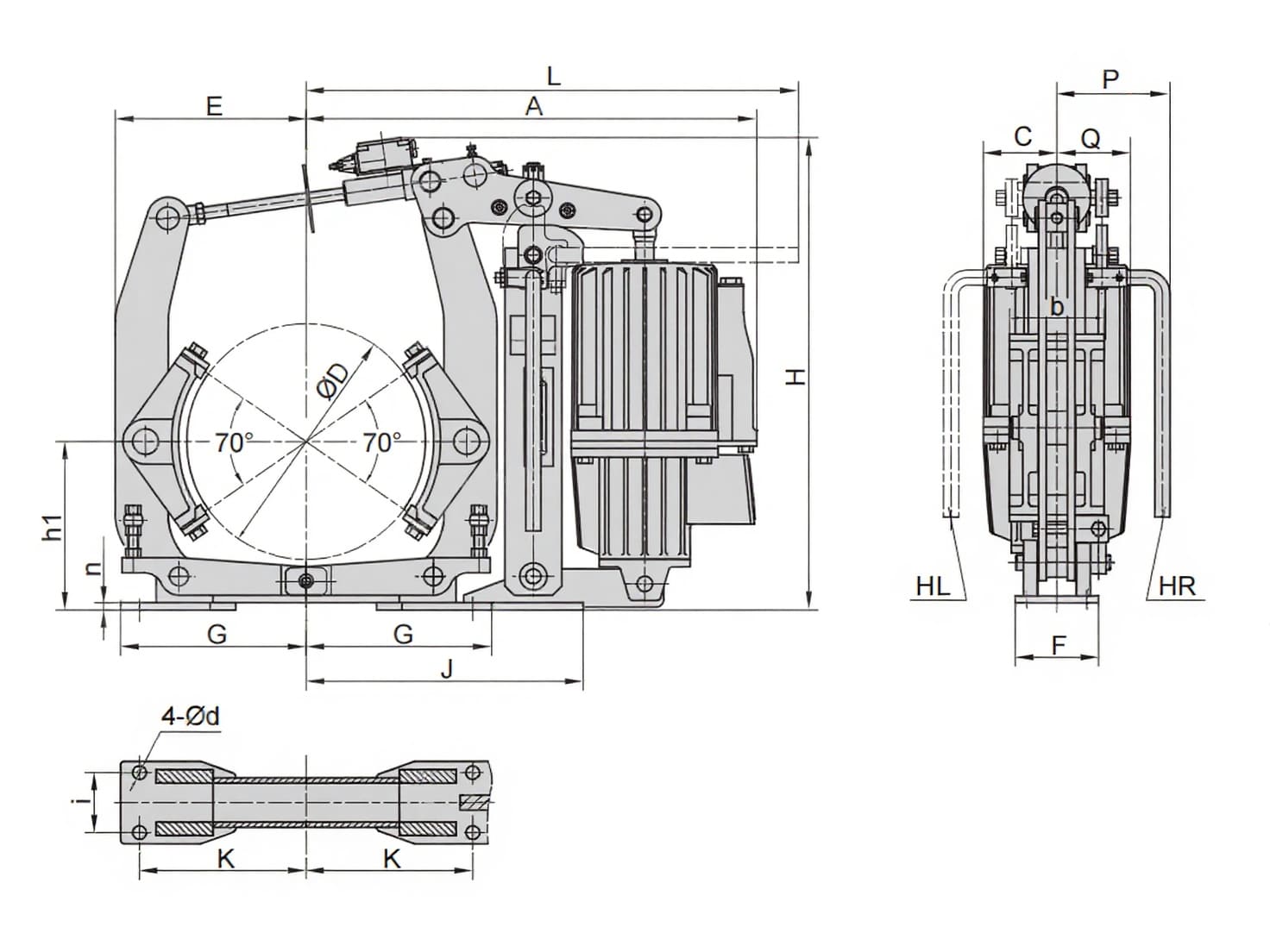

Braketype	Thrustertype	Braketorque(Nm)	D	h1	k	i	d	n	b	F	G	J	E	H	Weight (kg)
YWZ2-100/10	MYT2-10/2.5	20~40	100	100	110	40	13	8	70	70	130	175	130	335	22
YWZ2-200/25	MYT2-25/4	100~200	200	170	175	60	17	8	90	100	210	245	200	475	33
YWZ2-300/25	MYT2-25/4	160~320	300	240	250	80	22	10	140	130	295	358	275	595	65
YWZ2-300/50	MYT2-50/6	315~630	300	240	250	80	22	10	140	130	295	358	275	595	86
YWZ2-400/50	MYT2-50/6	500~1000	400	320	325	130	22	12	180	180	350	420	350	745	111
YWZ2-400/100	MYT2-100/6	800~1600	400	320	325	130	22	12	180	180	350	420	350	810	115
YWZ2-400/125	MYT2-125/6	1000~2000	400	320	325	130	22	12	180	180	350	420	350	810	133
YWZ2-500/125	MYT2-125/10	1250~2500	500	400	380	150	22	16	200	200	405	484	410	915	212
YWZ2-600/200	MYT2-200/12	2500~5000	600	475	475	170	27	20	240	220	500	590	500	1075	309
YWZ2-700/200	MYT2-200/12	4000~8000	700	550	540	200	34	25	280	270	575	760	550	1255	390
YWZ2-800/200	MYT2-200/12	5000~10000	800	600	620	240	34	28	320	310	660	860	700	1480	692
YWZ2-800/300	MYT2-300/12	6300~12500	800	600	620	240	34	28	320	310	660	860	700	1480	680

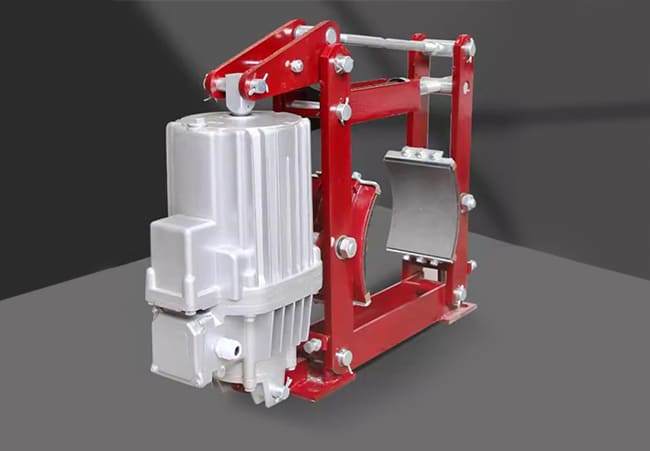

Product Features and Applications

Features:

High braking torque ensures stable control of heavy loads.
Friction linings resist heat, wear, and fatigue for reliable operation.
Multiple brake types such as overhead crane disc brakes and shoe brakes adapt to different crane hoist brake system designs.

Applications:

Overhead crane brakes are widely used in overhead cranes, gantry cranes, and hoists in steel plants, shipyards, and power stations. They ensure safe stopping and holding of loads. In overhead crane hoist brakes, the design minimizes downtime and improves efficiency, making them essential in high-frequency lifting operations.

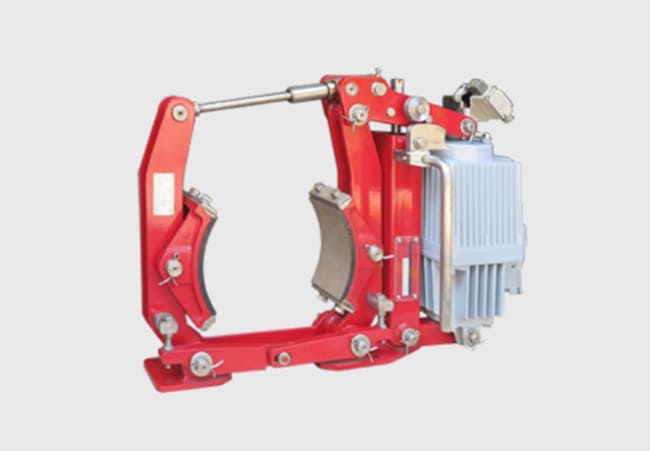

Product Details

Each overhead crane brake is built with cast or forged steel housings, heat-treated shafts, and wear-resistant friction pads. The wire rope drum or hoist drum crane connects with the crane hoist brake system, ensuring precise braking under heavy loads.

Brake linings are tested for high friction stability, while springs and actuators provide fast response. Overhead crane disc brakes offer compact structure, reduced maintenance, and long lifespan. Hydraulic and electromagnetic models are available for different crane requirements.

Before delivery, all overhead crane brakes undergo strict inspections, including torque testing, durability checks, and dynamic load trials, ensuring safety and compliance with international standards.

Product Support

Hanko Heavy Industries specializes in the research and manufacturing of overhead crane brakes. We use high-strength steel and precision machining to guarantee safety and reliability. Our team strictly follows ISO quality systems, from raw material testing to assembly and performance validation.

Every overhead crane brake, including overhead crane hoist brakes and overhead crane disc brakes, is tested under dynamic load conditions. This ensures stable braking force, extended service life, and compatibility with modern crane hoist brake systems.
