Crane Equalizer Sheave

1.High Strength Design – Crane equalizer sheaves are made from forged or alloy steel, offering excellent load distribution and fatigue resistance.

2.Extended Rope Life – Precision-machined grooves reduce wear on wire ropes and improve alignment during lifting.

3.Versatile Application – Suitable for overhead cranes, gantry cranes, and hoist systems, with options for single and double sheaves.

Crane equalizer sheaves ensure balanced lifting, reduce rope wear, and improve overall crane efficiency, making them vital for safe and heavy-duty operations.

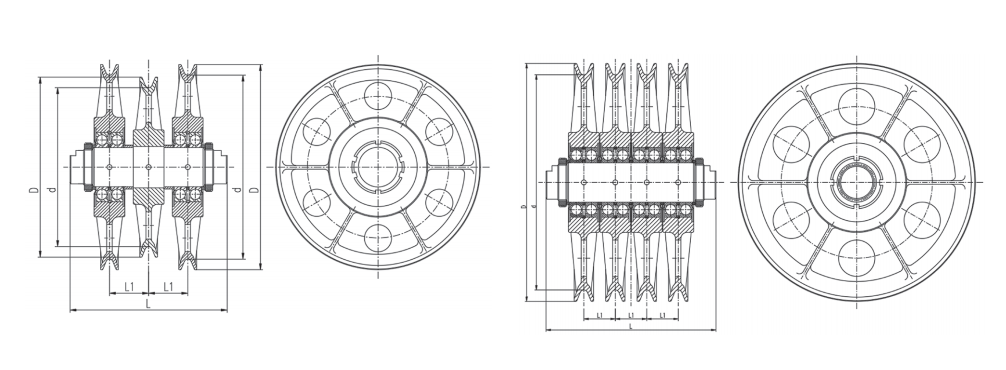

Serial No.	Tonnage	Dimensions
Serial No.	Tonnage	Pulley Diameter d/D	Shaft Length L	Ratio	Distance Between Pulley Plates L1
1	5t	∅250/∅300	130	2
2	10t	∅400/∅450	310	3	84
3	16t	∅500/∅565	376	3	140
4	20t	∅500/∅565, ∅300/∅360	470	4	92, 92
5	32t	∅610/∅680, ∅400/∅470	526	4	130, 130
6	50t	∅710/∅785	555	5	104, 104, 104

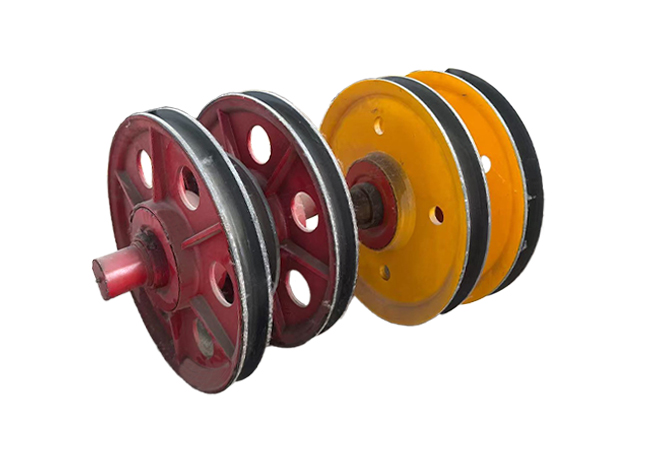

Product Features and Applications

Features:

The crane equalizer sheave is forged for superior strength and consistent performance.
Precision grooves reduce rope misalignment and extend wire rope lifespan.
Optional designs include single, double, or auxiliary sheaves depending on crane capacity.

Applications:

Crane equalizer sheaves are essential in overhead crane systems, gantry cranes, and hoists. They are often used as crane auxiliary sheaves in lifting mechanisms to balance loads across multiple ropes. In industries such as ports, shipyards, and mining, operators use equalizer sheaves to ensure smoother and safer lifting. They are also useful when learning how to use double sheave pulley setups, improving stability and efficiency in heavy-duty operations.

Product Details

Each crane equalizer sheave is manufactured using high-quality alloy steel or ductile iron for strength and durability. The sheave body undergoes quenching to achieve hardness between HRC45–50, ensuring wear resistance and reliable rope guidance.

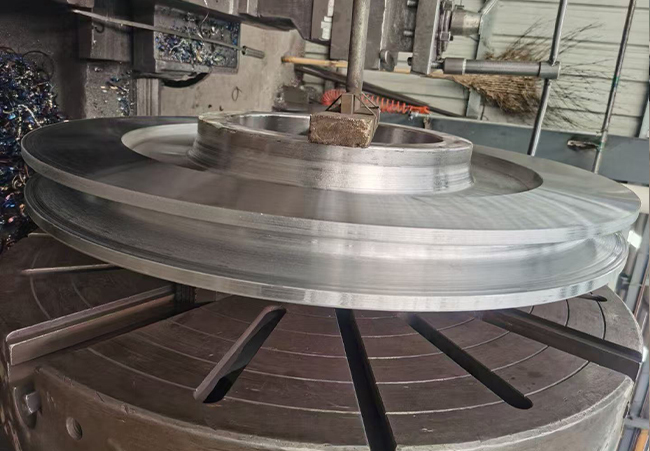

The grooves are precisely CNC-machined to match wire rope standards, providing uniform contact and preventing slippage. Bearings are installed inside the equalizer sheave to ensure smooth, low-friction rotation under high loads. Protective coatings, such as anti-rust paint or thermal spray zinc, are applied to resist harsh environments.

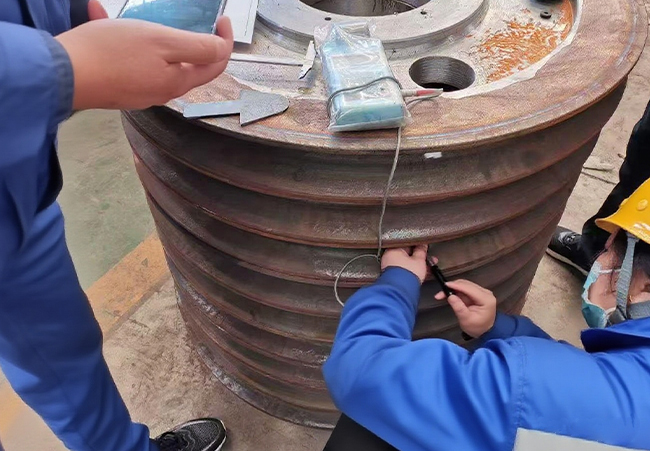

Before leaving the factory, every crane equalizer sheave is tested for load capacity, surface accuracy, and safety performance. Both standard and customized sizes are available to meet different crane applications, ensuring compatibility with overhead crane sheave assemblies and auxiliary lifting systems.

Product Support

Hanko Heavy Industries specializes in the R&D and manufacturing of crane equalizer sheave products. We use high-strength alloy steel and precision machining to ensure superior rope alignment, smooth operation, and long service life. Our technical team follows ISO quality standards with strict inspections at each stage, from raw material selection to machining and testing. Every crane auxiliary sheave undergoes dynamic load testing and non-destructive inspection to guarantee safety and performance. Whether you need standard or custom designs, Hanko delivers professional solutions and reliable products.

We are manufacturers of crane equalizer sheave.
