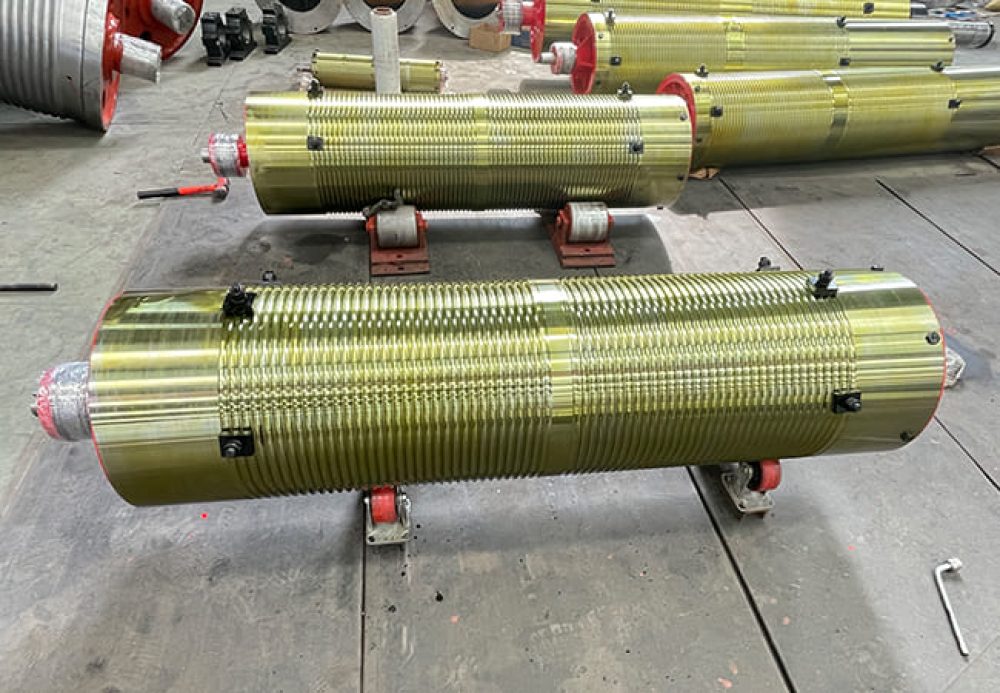

Crane Hoist Drums

1.High-Strength Structure: Crane Hoist Drums are made from premium alloy steel or welded steel plates, offering strong load-bearing capacity and excellent resistance to deformation.

2.Precision-Machined Grooves: The optimized groove design arranges wire ropes neatly, reducing wear and preventing slippage during heavy lifting.

3.Anti-Corrosion Durability: Surfaces are treated with anti-corrosion coatings or thermal spray, making each crane drum reliable in harsh environments.

Hanko Crane Hoist Drums deliver durability, safety, and stability. With strong materials and precision machining, every hoist drum ensures smooth lifting, longer service life, and compatibility with multiple crane systems.

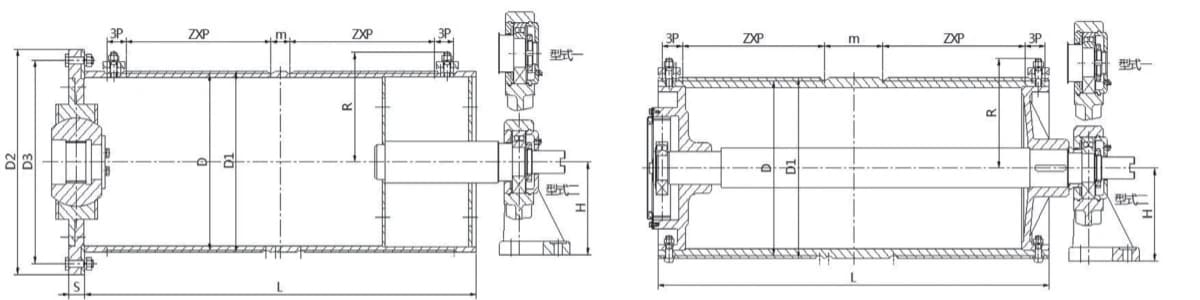

Specification D⨉L	Load capacity(t)	Lifting height(m)	D2	P	H
φ400⨉1000	5	15	510	16	210
φ400⨉1500	5/10	22/16	510	16	210
φ500⨉1500	16/20	16/12	640	20	260
φ650⨉2000	32	17	810	24	360
φ800⨉2000	50	12	960	28	420
φ800⨉3600	75	20	950	34	420
φ1000⨉3500	100/125	20	1200	36	530

Product Features and Applications

Features:

1.CNC-machined grooves with uniform depth prevent rope slippage and reduce wire wear.

2.Anti-corrosion surface treatment extends the drum hoist system lifespan in tough working environments.

Applications:

Crane Hoist Drums are widely used in metallurgy, ports, shipbuilding, and mining. These hoist drums meet the requirements of frequent start-stop operations and high-capacity lifting tasks. Available in both standard and custom crane drum designs, they ensure reliability in demanding applications.

Product Details

Each Crane Hoist Drum is made from high-strength alloy steel to withstand heavy loads. Precisely machined and polished grooves allow wire ropes to wind smoothly at high speeds. Heat-treated bearing seats increase impact resistance, while anti-rust coatings protect the drum hoist from environmental damage.

The hoist drum design supports different mounting methods, making it easy to adapt to overhead cranes, gantry cranes, and winch systems. Before leaving the factory, every crane drum undergoes strict inspections, including non-destructive testing and dynamic load checks, ensuring safety and consistent performance.

Product Support

Hanko Heavy Industries specializes in the R&D and manufacturing of Crane Hoist Drums. We use forged alloy steel or welded steel plates to guarantee strength, wear resistance, and stability. Our technical team follows the ISO quality management system with strict control over raw material inspection, welding, machining, and surface treatment.

Each drum hoist system is tested with dynamic load checks and non-destructive inspection before shipment. This ensures smooth operation, safety, and long service life. Whether you require standard crane drum sizes or fully customized hoist drum designs, Hanko provides high-quality products and professional support.

We are manufacturers of Crane Hoist Drums.

Swivel Crane Hooks

Swivel crane hooks allow loads to rotate freely, reducing wire rope stress and improving accuracy.

Single Crane Hook

The single crane hook is the most common lifting component in hoisting systems. Compared with double hooks, it provides a simple, cost-effective solution for medium loads.

Overhead Crane Hook

The overhead crane hook is a vital lifting component for bridge cranes, gantry cranes, and other overhead lifting equipment.

Mobile Crane Hook

A mobile crane hook is a vital component that connects the crane to the load. Designed for heavy-duty use, it ensures strength, safety, and efficiency.

Forged Crane Hook

A forged crane hook is a key lifting component that ensures both operator and load safety.

Eot Crane Hook

The eot crane hook connects crane and load, ensuring safety and efficiency during lifting. It works with hoist and trolley systems and supports crane main hook and auxiliary hook lifting.

Complete Guide

About Hanko

Hanko products are manufactured using high-strength materials and go through strict quality inspections to ensure durability and operational safety.

We offer custom manufacturing services for non-standard parts based on customer drawings or specific requirements.

Our products meet international standards and are exported worldwide, earning the trust of clients across Asia, the Middle East, Europe, and beyond.

Why do crane parts need to be replaced regularly?

Over time, wear and tear can affect safety and performance — regular replacement ensures reliability.

Do you offer long-term spare parts supply?

Yes, we ensure continued availability of all key spare parts.

Do you offer on-site support?

Yes, we can dispatch engineers for on-site installation or commissioning
