Crane Pulley

1.Load Distribution: A Crane Pulley spreads the lifting force across several ropes, which reduces strain on each rope.

2.Durability: Each crane pulley block is made from alloy steel and produced with precision machining.

3.Smooth Operation: The groove of the crane pulley wheel is hardened to reduce rope wear and keep lifting stable.

Crane Pulley systems are essential parts of lifting machinery. They protect ropes, reduce effort, and keep lifting operations reliable in overhead, gantry, and tower cranes.

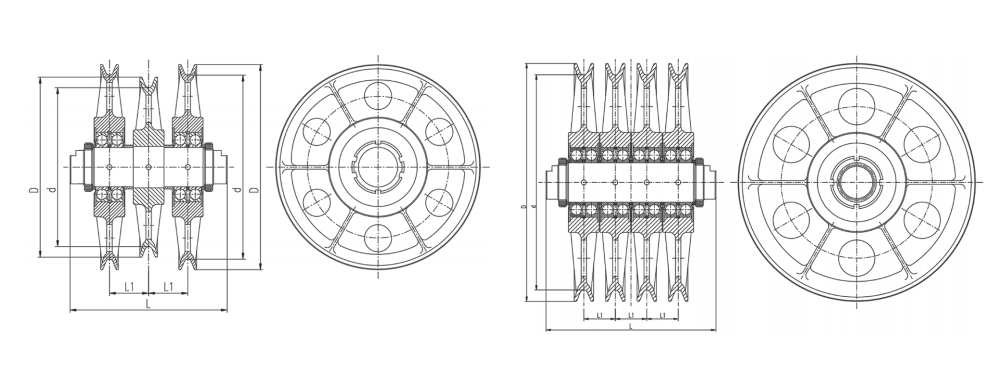

Serial No.	Tonnage	Dimensions
Serial No.	Tonnage	Pulley Diameter d/D	Shaft Length L	Ratio	Distance Between Pulley Plates L1
1	5t	∅250/∅300	130	2
2	10t	∅400/∅450	310	3	84
3	16t	∅500/∅565	376	3	140
4	20t	∅500/∅565, ∅300/∅360	470	4	92, 92
5	32t	∅610/∅680, ∅400/∅470	526	4	130, 130
6	50t	∅710/∅785	555	5	104, 104, 104

Product Features and Applications

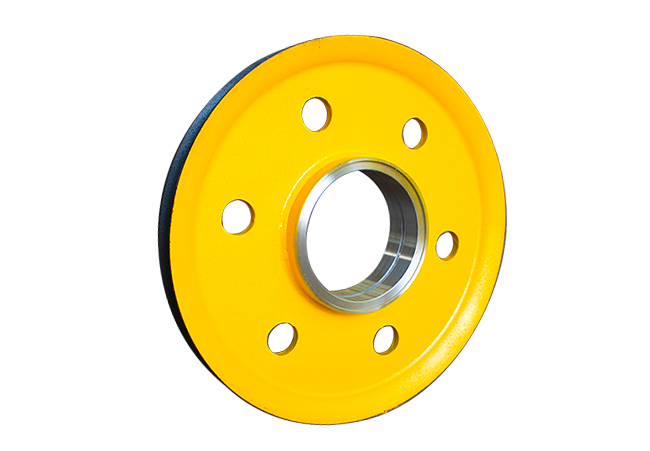

Features:

1.Forged alloy steel construction gives each crane rope pulley high strength and wear resistance.

2.Hardened groove surface resists rope friction and extends rope life.

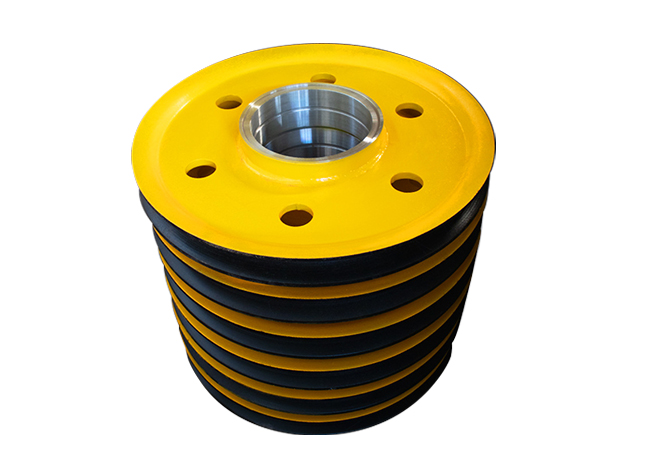

3.Single, double, or multiple sheave designs match different crane pulley system needs.

Applications:

Crane pulleys are used in overhead cranes, gantry cranes, tower cranes, and hoists. A tower crane pulley system is vital in construction, mining, and shipyards. A crane wire rope pulley reduces lifting effort and extends rope service. These wheels make lifting efficient, lower cost, and improve safety.

Product Details

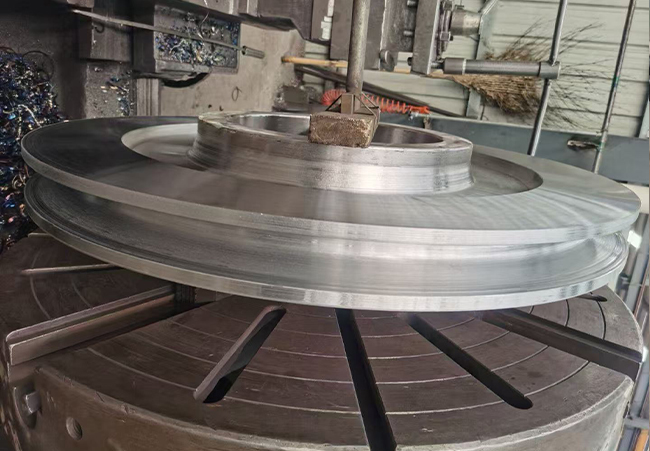

Each Crane Pulley is made from alloy steel or ductile iron. Grooves are precisely machined for correct rope fit. The groove surface is hardened to HRC45–50 to resist wear and prevent rope damage.

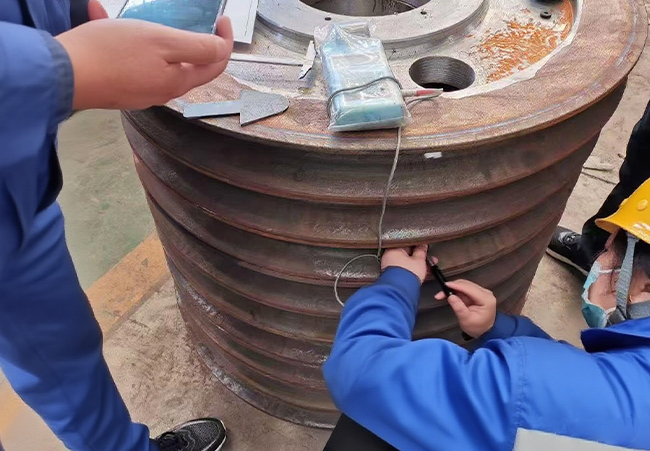

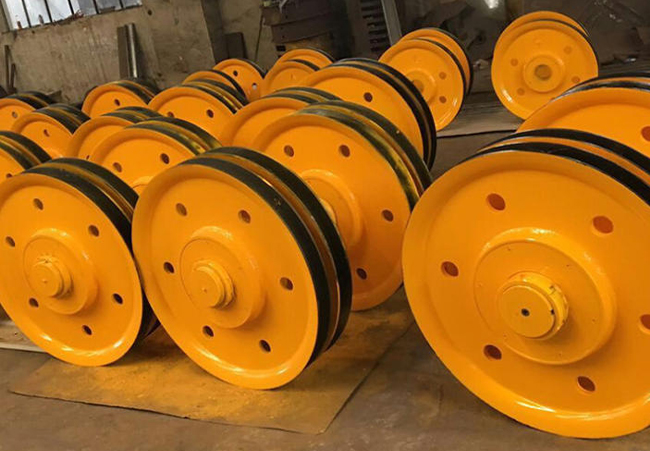

Bearings are placed inside the crane pulley wheel to ensure smooth rotation and low friction. Pulleys can be single or multiple sheaves, depending on lifting needs. They are mounted with hooks, shackles, or other fittings. Before shipment, each crane pulley block goes through load testing, dimension checks, and anti-rust coating. These steps ensure safe use and reliable performance.

Product Support

Hanko Heavy Industries focuses on Crane Pulley design and production. We use alloy steel and precision machining to make strong and reliable pulleys. Our team follows ISO standards and checks raw materials, CNC machining, and groove hardening at each step. Every crane pulley system passes load tests and inspections before delivery. We supply tower crane pulleys, EOT crane pulleys, and custom solutions to match different crane pulley price and performance needs. Hanko offers stable products and technical support for global clients.

We are manufacturers of Crane Pulley.

Swivel Crane Hooks

Swivel crane hooks allow loads to rotate freely, reducing wire rope stress and improving accuracy.

Single Crane Hook

The single crane hook is the most common lifting component in hoisting systems. Compared with double hooks, it provides a simple, cost-effective solution for medium loads.

Overhead Crane Hook

The overhead crane hook is a vital lifting component for bridge cranes, gantry cranes, and other overhead lifting equipment.

Mobile Crane Hook

A mobile crane hook is a vital component that connects the crane to the load. Designed for heavy-duty use, it ensures strength, safety, and efficiency.

Forged Crane Hook

A forged crane hook is a key lifting component that ensures both operator and load safety.

Eot Crane Hook

The eot crane hook connects crane and load, ensuring safety and efficiency during lifting. It works with hoist and trolley systems and supports crane main hook and auxiliary hook lifting.

Complete Guide

About Hanko

Hanko products are manufactured using high-strength materials and go through strict quality inspections to ensure durability and operational safety.

We offer custom manufacturing services for non-standard parts based on customer drawings or specific requirements.

Our products meet international standards and are exported worldwide, earning the trust of clients across Asia, the Middle East, Europe, and beyond.

Why do crane parts need to be replaced regularly?

Over time, wear and tear can affect safety and performance — regular replacement ensures reliability.

Do you offer long-term spare parts supply?

Yes, we ensure continued availability of all key spare parts.

Do you offer on-site support?

Yes, we can dispatch engineers for on-site installation or commissioning
