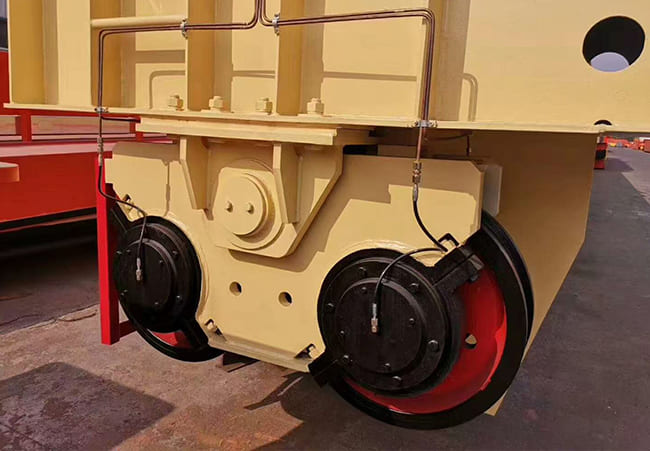

1.Heavy-Duty Performance: Built to handle continuous lifting and travel operations under extreme loads.
2.Optimized Design: Precision-machined wheel assemblies reduce vibration and improve running stability.
3.Easy Maintenance: Modular bearing housings allow quick replacement and minimal downtime.
Crane wheel assemblies deliver strength, stability, and reliability, ensuring cranes operate smoothly with reduced maintenance and extended service life.

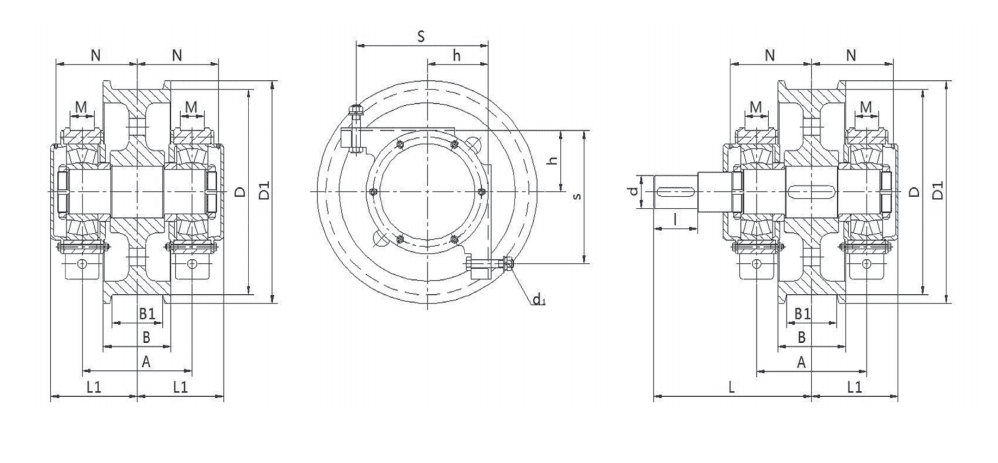

| Name | CraneWheelAssembliesDimensions(mm) | ||||||||||||
| D | D1 | B | B1 | A | L | L1 | h | S | M | d | l | d1 | |
| Driving Wheel Assembly Φ600 | 600 | 650 | 210/160 | 150/100 | 325 | 470 | 255 | 180 | 390 | 70 | 95 | 130 | M24 |
| Driven Wheel Assembly Φ600 | 600 | 650 | 210/160 | 150/100 | 325 | / | 255 | 180 | 390 | 70 | / | / | |
| Driving Wheel Assembly Φ700 | 700 | 750 | 210/160 | 150/100 | 360 | 500 | 280 | 200 | 440 | 80 | 110 | 165 | |
| Driven Wheel Assembly Φ700 | 700 | 750 | 210/160 | 150/100 | 360 | / | 280 | 200 | 440 | 80 | / | / | |
| Driving Wheel Assembly Φ700 | 700 | 750 | 210/160 | 150/100 | 380 | 500 | 305 | 220 | 485 | 80 | 110 | 165 | M30 |
| Driven Wheel Assembly Φ700 | 700 | 750 | 210/160 | 150/100 | 380 | / | 305 | 220 | 485 | 80 | / | / | |
| Driving Wheel Assembly Φ800 | 800 | 850 | 210/160 | 150/100 | 380 | 500 | 305 | 220 | 485 | 80 | 110 | 165 | |
| Driven Wheel Assembly Φ800 | 800 | 850 | 210/160 | 150/100 | 380 | / | 305 | 220 | 485 | 80 | / | / | |

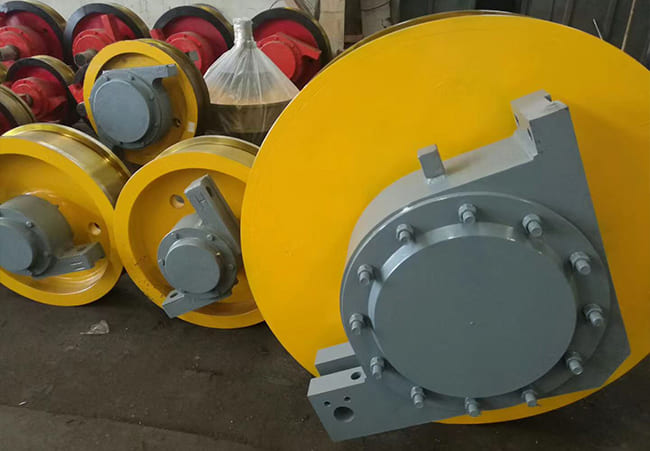

A Crane Wheel Assembly is a complete unit designed to support and guide cranes during operation, bearing both the crane’s self-weight and lifting loads. Made from high-strength forged or cast steel, these assemblies integrate wheels, bearings, and housings to ensure smooth travel and safe operation. With advanced heat treatment, precision machining, and strict inspection, Crane Wheel Assemblies guarantee long-lasting performance in heavy-duty industrial environments.

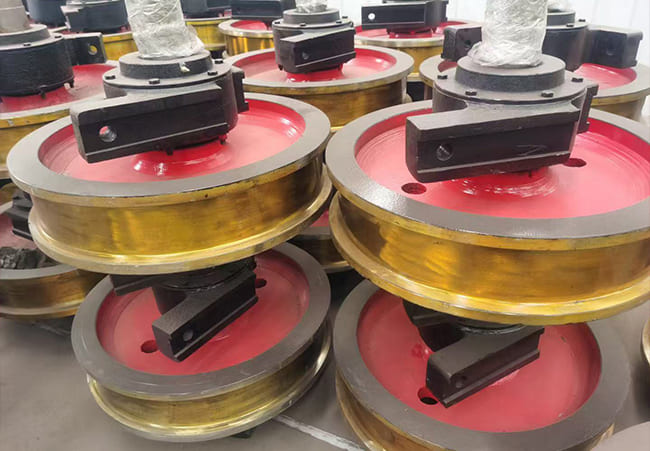

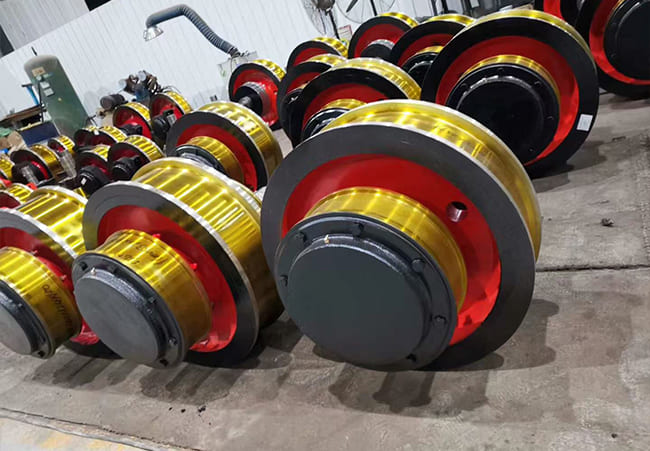

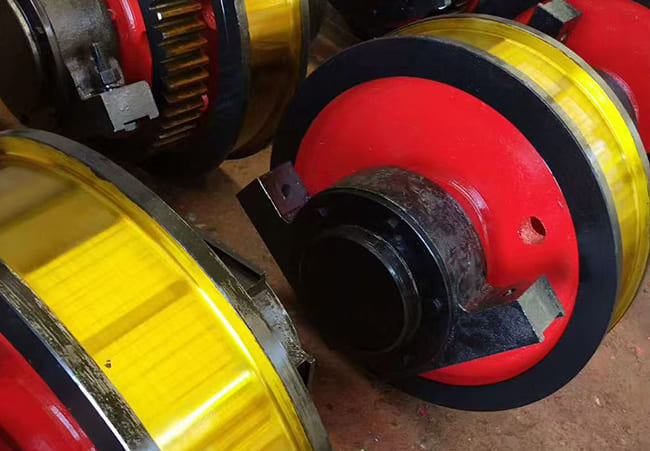

These assemblies are widely applied in crane rail wheels, bridge crane wheels, eot crane wheel assemblies, gantry crane wheel assemblies, overhead crane wheel assemblies, and crane drive wheel assemblies, making them versatile for different crane systems across ports, steel mills, and manufacturing plants.
Each Crane Wheel Assembly is manufactured using materials like 42CrMo, 50SiMn, or ZG430-640, ensuring both hardness and toughness. Wheel treads are quenched to HRC40–48 with a depth of ≥12mm, while wheel bodies retain moderate hardness for crack resistance. Bearing housings are precisely machined for alignment accuracy and durability.
Assemblies include high-strength bolts, seals, and lubrication channels to ensure long-term reliability. Available in rimless, single-rim, or double-rim designs, they adapt to different crane structures. Before delivery, all crane wheel assemblies undergo ultrasonic testing, dimensional inspection, and dynamic load tests to guarantee consistent quality. Both standard and custom solutions are available to meet varied industrial requirements.

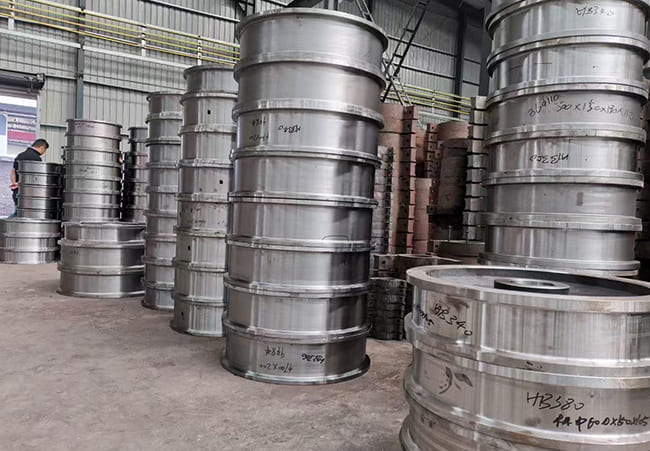

Hanko Heavy Industries specializes in the manufacturing of Crane Wheel Assembly, using high-strength alloy steel and precision machining to ensure superior load capacity, smooth operation, and wear resistance. Strict ISO quality management is applied from raw material inspection to CNC machining and surface hardening.

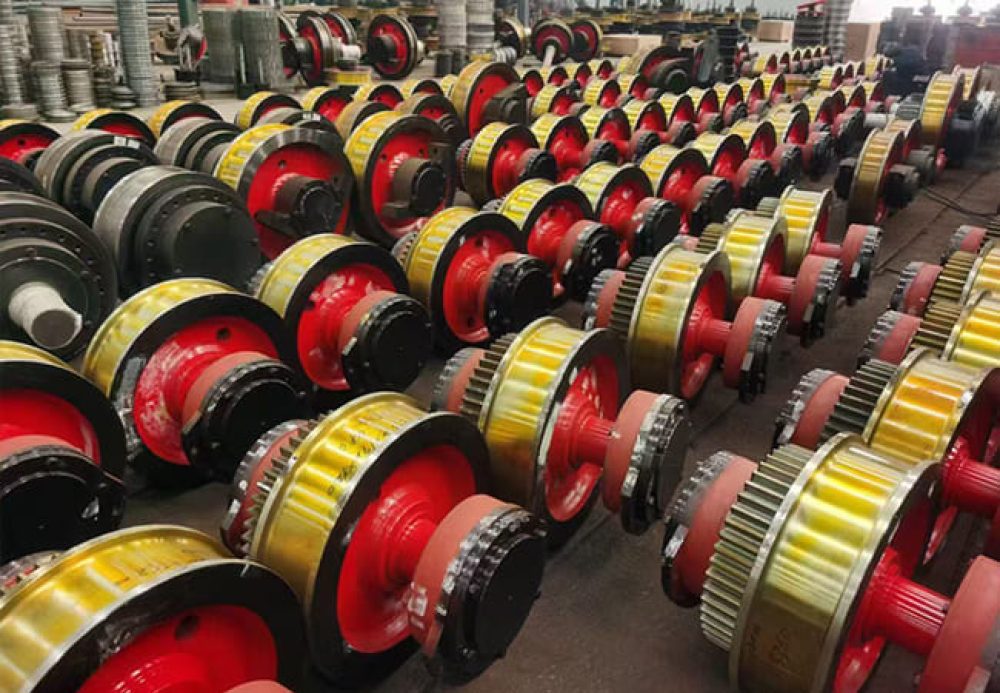

Each Crane Wheel Assembly, including gantry crane wheel assembly, eot crane wheel assembly, bridge crane wheels, overhead crane wheel assembly, and crane drive wheel assembly, undergoes dynamic load testing and non-destructive inspection before delivery. Hanko provides both standard and customized solutions with reliable performance and longer service life.
We are manufacturers of Crane Wheel Assembly.
