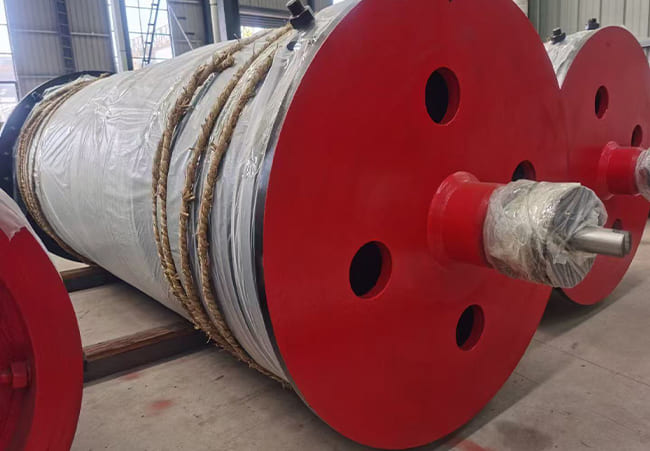

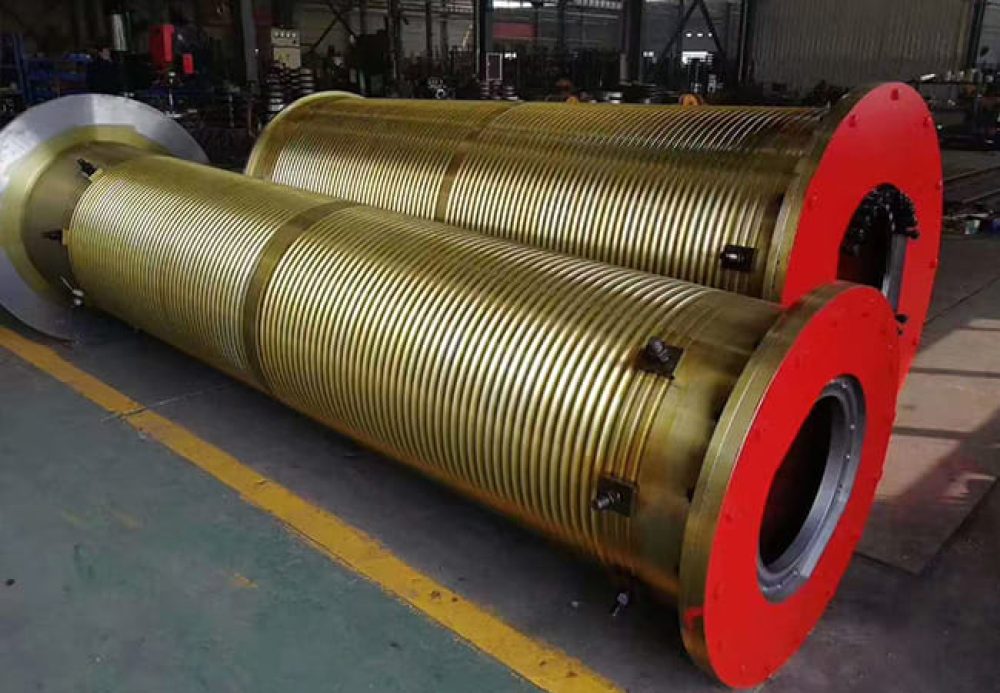

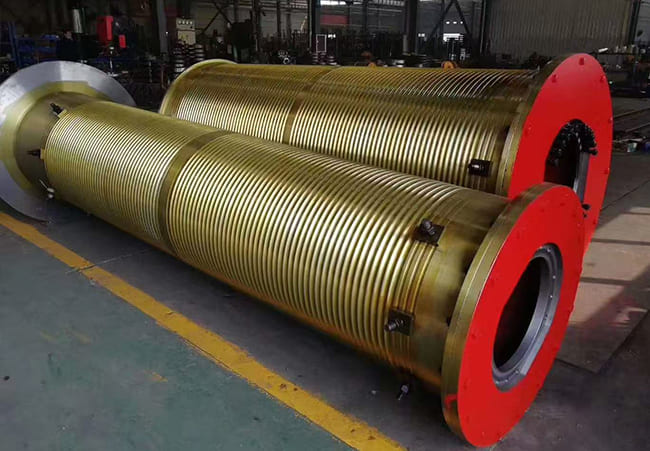

Crane Wire Rope Drum

1.High Strength and Durability – Each crane wire rope drum is made from forged alloy steel or welded steel plates with excellent load-bearing capacity.

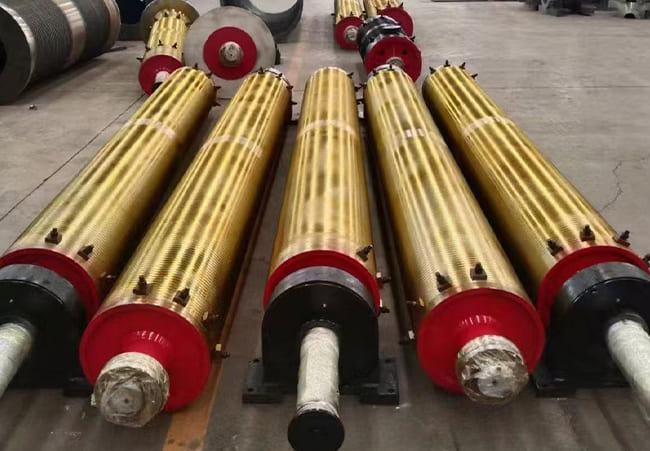

2.Accurate Groove Design – CNC-machined wire rope drum groove design ensures proper rope alignment, reducing wear and preventing slippage.

3.Extended Service Life – Heat treatment and anti-corrosion coatings provide stability and long-term performance for the crane rope drum.

The crane wire rope drum combines strength, precision, and safety, ensuring smooth lifting and reliable operation for heavy-duty crane applications.

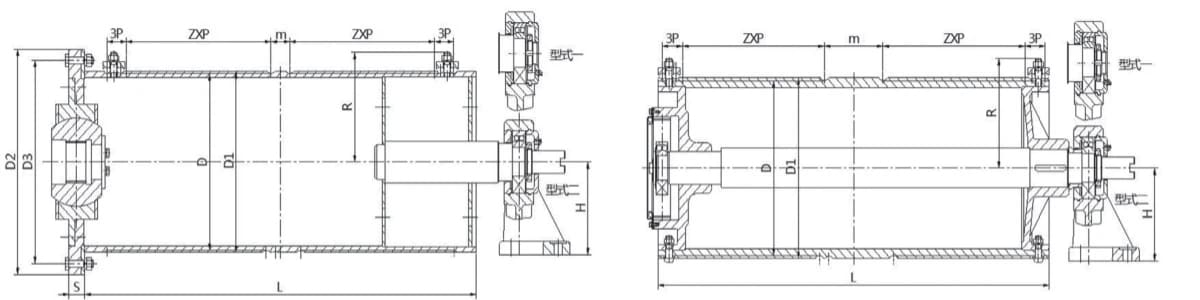

Name D×L	Lifting Capacity (t)	Lifting Height (m)	D1	D2	D3	m	P	R	S	H
Drum Group Φ400×1000	5	15	409	510	460	48	16	248	16	210
Drum Group Φ400×1500	5 (pair)/10	22/16	409	510	460	150/50	16	248	16	210
Drum Group Φ500×1500	16/20	16/12	512	640	580	120	20	316	20	260
Drum Group Φ650×2000	32	17	664	810	750	150	24	402	24	360
Drum Group Φ800×2000	50	12	816	960	900	350	28	478	26	420
Drum Group Φ800×3600	75	20	816	950	890	450	34	498	30	420
Drum Group Φ1000×3500	100/125	20	1020	1200	1100	300	36	595	34	530

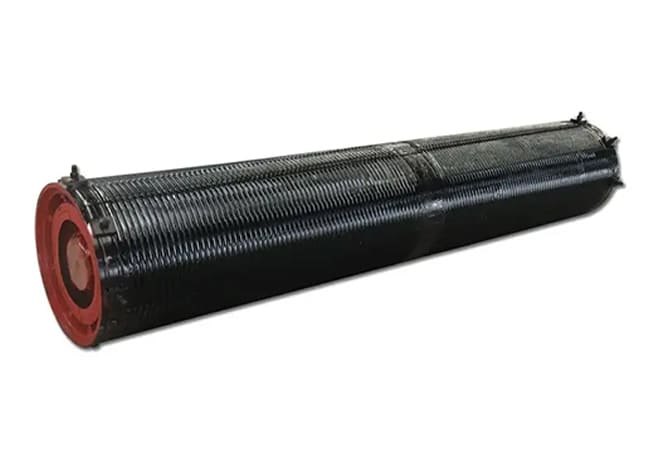

Product Features and Applications

Features:

Optimized wire rope drum groove design reduces rope fatigue and extends wire rope life.

Heat-treated surface ensures hardness, stability, and resistance against heavy friction.

Applications:

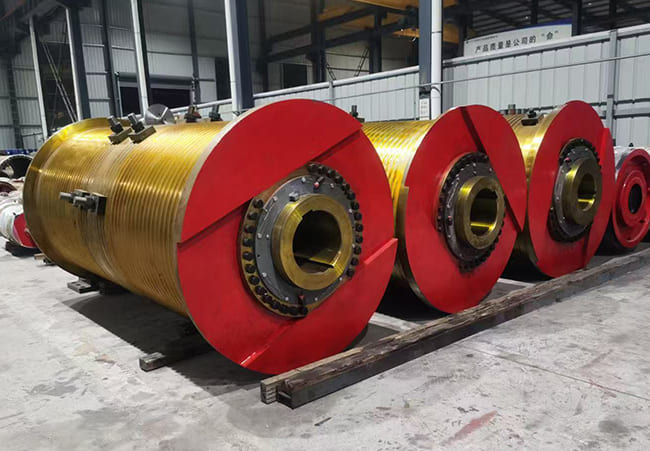

The crane wire rope drum is widely used in overhead cranes, gantry cranes, tower cranes, and winches. It is essential for industries such as metallurgy, shipbuilding, mining, and logistics. Both standard and custom crane rope drum options are available, ensuring compatibility with eot crane wire rope drum and overhead crane rope drum systems.

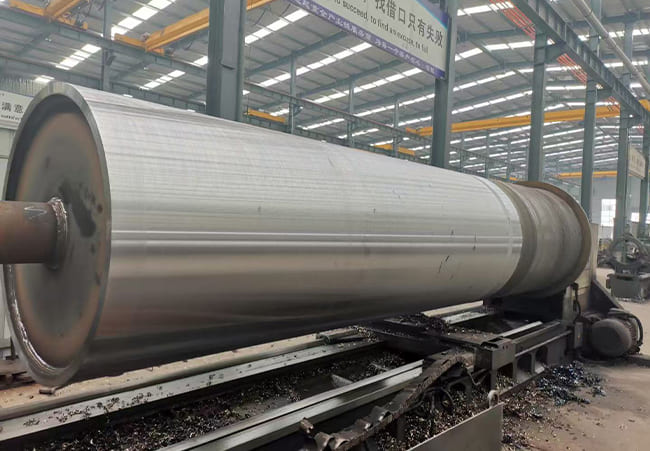

Product Details

Each crane wire rope drum is manufactured from 42CrMo, 65Mn, or ZG430-640 alloy steel. The CNC-machined wire rope drum groove design provides smooth winding and prevents rope jumping. Heat treatment increases hardness to HRC40–48, while the core maintains toughness for impact resistance.

The hoist drum crane is fitted with welded bearing seats for stability. Anti-rust coatings and thermal spray finishes protect against corrosion in harsh environments. Single, double, or multi-groove crane rope drum designs are available, with customizable diameter, length, and mounting styles. All products are tested under crane wire rope standards with load and non-destructive inspections before delivery.

Product Support

Hanko Heavy Industries specializes in the design and production of crane wire rope drum solutions. We use high-strength alloy steel and precise wire rope drum groove design to ensure durability and safety. Our technical team strictly follows ISO quality systems, controlling every stage from material inspection to machining and heat treatment.

Every eot crane wire rope drum and overhead crane rope drum undergoes dynamic load testing and non-destructive inspections before shipment. This guarantees smooth operation, long service life, and reliability. Hanko provides both standard and customized crane rope drum options with full technical support.
