Overhead Crane End Truck Wheels

Overhead crane end truck wheels are essential for the smooth operation of overhead cranes, ensuring stable movement of the crane along its rail system. These wheels are designed to handle high loads while maintaining precision and durability. Made from high-quality forged steel, they offer superior wear resistance and are ideal for both indoor and outdoor use. Whether you are looking for overhead crane end truck wheels for sale or need a replacement for your overhead crane end truck wheels, our products are engineered to meet demanding industrial standards. We also offer customized solutions to suit your specific needs, including overhead crane trolley wheels and overhead crane drive wheels.

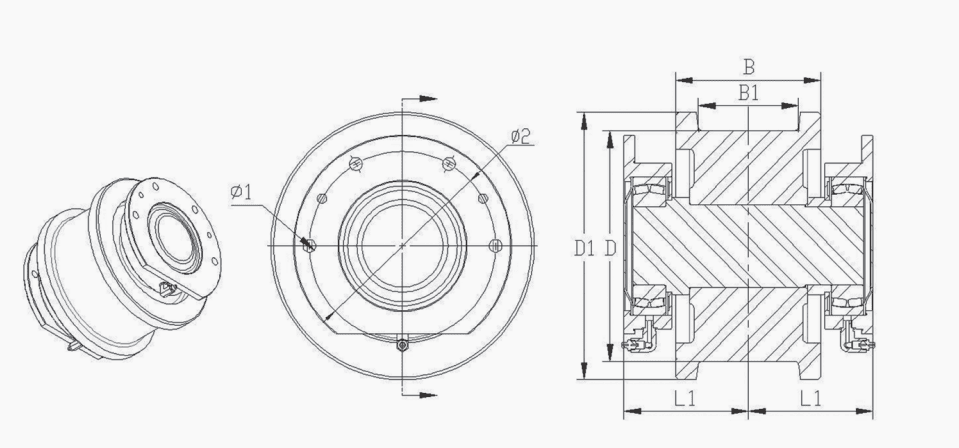

Model D(h9) D1 L1 L1 M B B1 ∅1 ∅2
Passive wheel set Φ160 160 190 93 93 M10 90 60 11 135
Passive wheel set Φ200 200 230 117 117 M12 210/160 150/100 12 165
Passive wheel set Φ250 250 280 137 137 M16 210/160 150/100 14 205
Passive wheel set Φ315 315 355 146 146 M16 210/160 150/100 14 260
Passive wheel set Φ400 400 440 180 180 M16 210/160 150/100 18 320
Passive wheel set Φ500 500 540 210 210 M20 210/160 150/100 22 380
Passive wheel set Φ630 630 680 230 230 M20 210/160 150/100 22 430

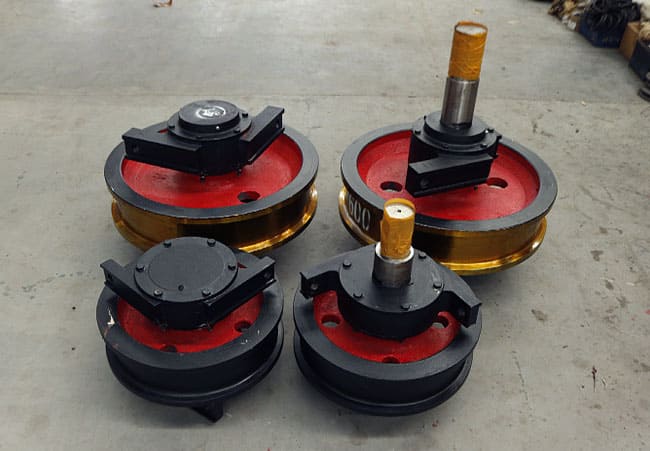

Product Features and Applications

Features:

1.Overall forging, high strength, deep wear layer.

2.The series of wheels are hot formed by forging technology. The metal flow line distribution is more complete and reasonable, which prolongs the service life of the wheel, and has excellent mechanical properties and safe and reliable quality.

3.Material: 42CrMo, 65# 60#, etc., can also be customized according to customer requirements.

4.Tread and rim quenching layer depth ≥ 12mm, hardness HRC ≤ 55

Applications:

Overhead crane end truck wheels are applicable to overhead cranes, gantry cranes and industrial cranes, and also serve as replacements for overhead crane end truck in various industrial settings.

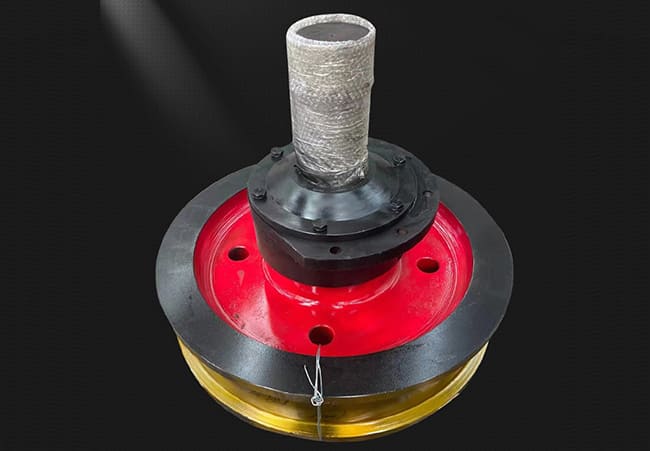

Product Details

1.Material: Made from high-quality forged alloy steel to ensure strength and durability.

2.Precision machining: Ensures smooth and efficient operation, reducing maintenance costs.

3.Customization: Available in a wide range of overhead crane wheel dimensions to suit specific crane systems.

4.Durability: Designed for heavy-duty applications, offering long service life in high-load environments.

Product Support

We are manufacturers of overhead crane end truck wheels, specializing in high-performance crane components. All products undergo stringent quality controls, including dynamic load testing and non-destructive inspections, ensuring they meet the highest safety and performance standards. Hanko Heavy Industry’s experienced technical team guarantees that each product is manufactured to provide reliable, long-term performance.

Related Products

Complete Guide

About Hanko

Hanko products are manufactured using high-strength materials and go through strict quality inspections to ensure durability and operational safety.

We offer custom manufacturing services for non-standard parts based on customer drawings or specific requirements.

Our products meet international standards and are exported worldwide, earning the trust of clients across Asia, the Middle East, Europe, and beyond.

Why do crane parts need to be replaced regularly?

Over time, wear and tear can affect safety and performance — regular replacement ensures reliability.

Yes, we ensure continued availability of all key spare parts.

Yes, we can dispatch engineers for on-site installation or commissioning
