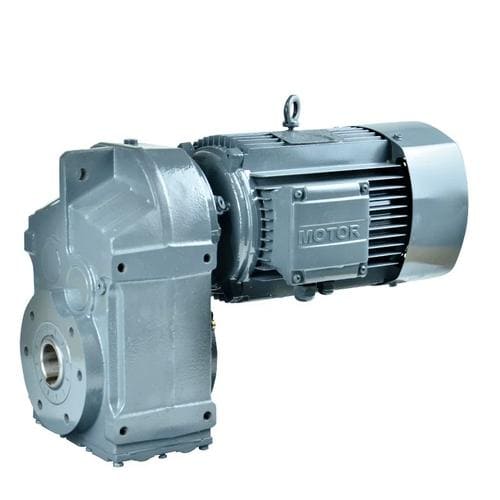

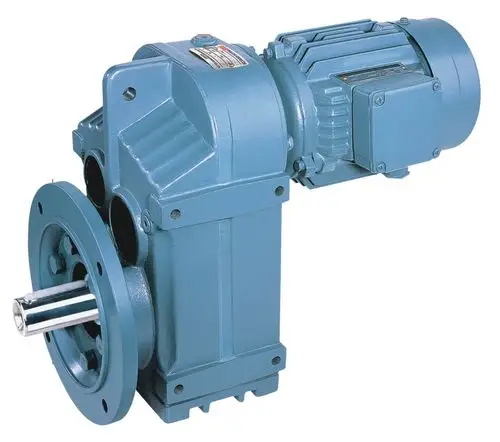

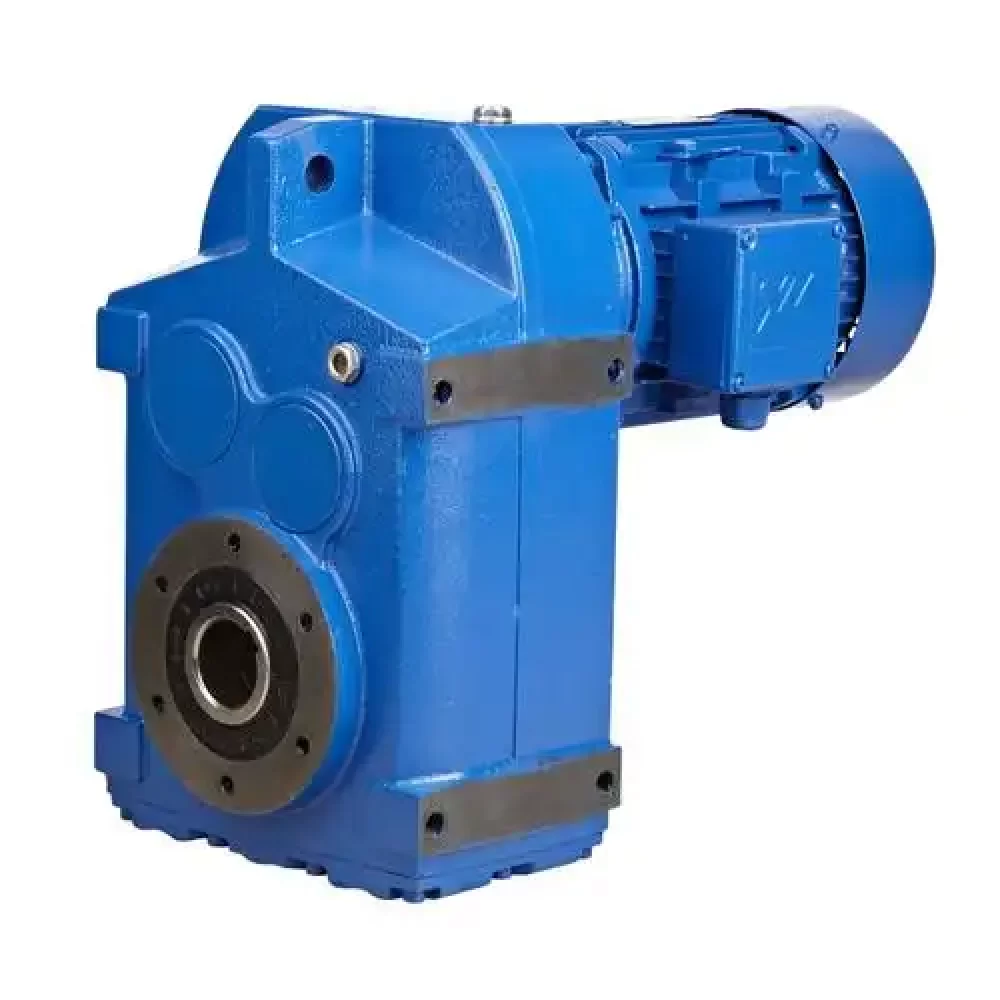

Overhead crane gearbox solutions from Hanko are built for durability and performance. Each gearbox delivers high torque output with compact size and long service life. Optimized gear design reduces noise and vibration, while advanced cooling ensures stability. Long-life overhead crane gearbox oil extends maintenance cycles. With customization available, our gearboxes support heavy-duty cranes and hoists.
| Size | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 127 | 157 |

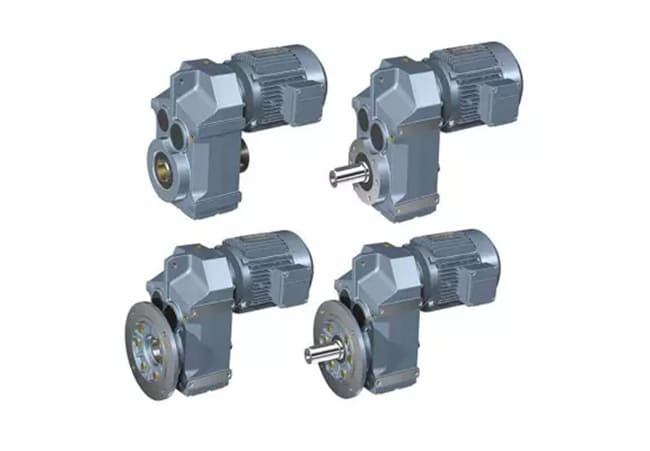

| Structure | F FA FF FAF FAZ | |||||||||
| Input power rating(kw) | 0.18~3 | 0.18~3 | 0.18~5.5 | 0.18~5.5 | 0.37~11 | 0.75~22 | 1.1~30 | 2.2~45 | 7.5~90 | 11~200 |
| Ratio | 3.81~128.51 | 5.06~189.39 | 5.18~199.70 | 4.21~228.99 | 4.30~281.71 | 4.12~270.68 | 4.68~280.76 | 6.20~254.40 | 4.63~172.17 | 11.92~267.43 |
| (n·m)
Permissible torque |
200 | 400 | 600 | 820 | 1500 | 3000 | 4300 | 7840 | 12000 | 18000 |
1.Compact, lightweight design lowers crane weight.
2.High efficiency gears reduce energy loss and noise.
3.Flexible layout with reduced gearbox height.
4.Reliable torque output ensures lifting safety.
5.Low-maintenance cycles with long-life oil.
Applications include bridge cranes, gantry cranes, yard cranes, swivel cranes, yard cranes, container cranes and RTG cranes, where different types of gearbox in mechanical engineering are required.

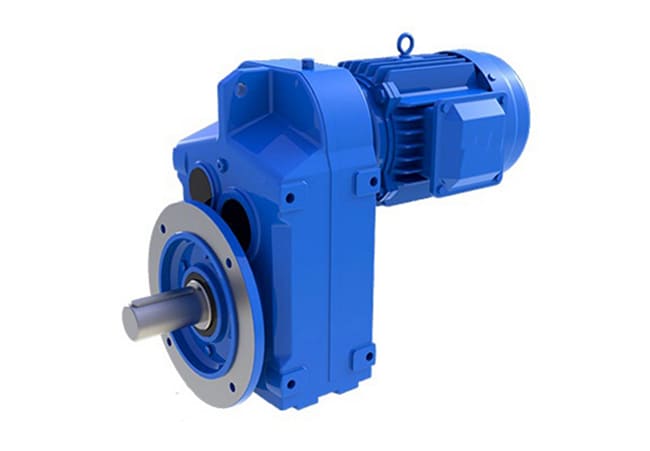

1.Modular Design: Full modular structure for large-scale production.
2.Gear Teeth: Carburized, quenched, and ground for high hardness and accuracy.
3.Housing: Noise-absorbing design reduces operational noise.
4.Cooling: Large box surface area with effective cooling system.
5.Installation: Flexible mounting options for diverse crane models.
At Hanko Heavy Industry, every overhead crane gearbox is engineered with precision. Gears are modeled and calculated to minimize cracking, stress, and wear. Each unit undergoes ultrasonic inspection, load testing, and dynamic balance verification. We are manufacturers of overhead crane gearbox, delivering standard models and customized designs. For overhead crane hoist gearbox, our products meet global requirements. Our team also provides modernization services, ensuring compliance with the latest standards.
